KE6YJC DMR Repeater Online

Well Christmas came early for Fresnoians! 🙂 I was able to get the DMR Repeater ahead of time and we have it online in a testing mode from the downtown area. Current tests show that the repeater can be hit with an HT up to Shaw Ave. The goal of the repeater is to provide greater low level or HT access for the greater Fresno area. While this will be a low level repeater it’s a great addition to the DMR network and is part of the Mountain West network. Below is the repeater information for programming your code plug and all the Talk Groups that will be carried on the KE6YJC Repeater.

---



KE6YJC Downtown Fresno UHF 440.0625 + 5.00MHz Color Code 1

Talk Group	Talk Group ID	Time Slot	AA/UA	Activity Timer	Hold off Timer
Local	2	1	AA		5 Min
Snars	6968	1	AA		5 Min
Mountain West Mountain	236225 3177	2 2	AA AA		5 Min 5 Min
Statewide	3107	2	AA		5 Min
Statewide 1	2251	2	UA	5 Min
Southwest	3176	2	AA		5 Min
Southwest 1	31761	2	UA	5 Min
North America World World Eng	3 1 13	2 2 2	UA UA UA	5 Min 5 Min 5 Min
Hytera USA	4639	2	UA	20 Min	5 Min
Tac 310	310	2	UA	5 Min
Comm 1	3777215	2	UA	5 Min
UA1	113	2	UA	5 Min
Audio Meter	9999	2	UA	5 Min
Parrot (Echo)	9998	2	UA	5 Min

AA – Talk Group always active
UA – Talk Group is user activated by PTT (Push To Talk Button) PTT
Activity Timer – The amount of time the Talk group is active if no PTT Activity is detected
Hold Off Timer – Amount of time before talk group is active again to provide priority traffic on a Time Slot.

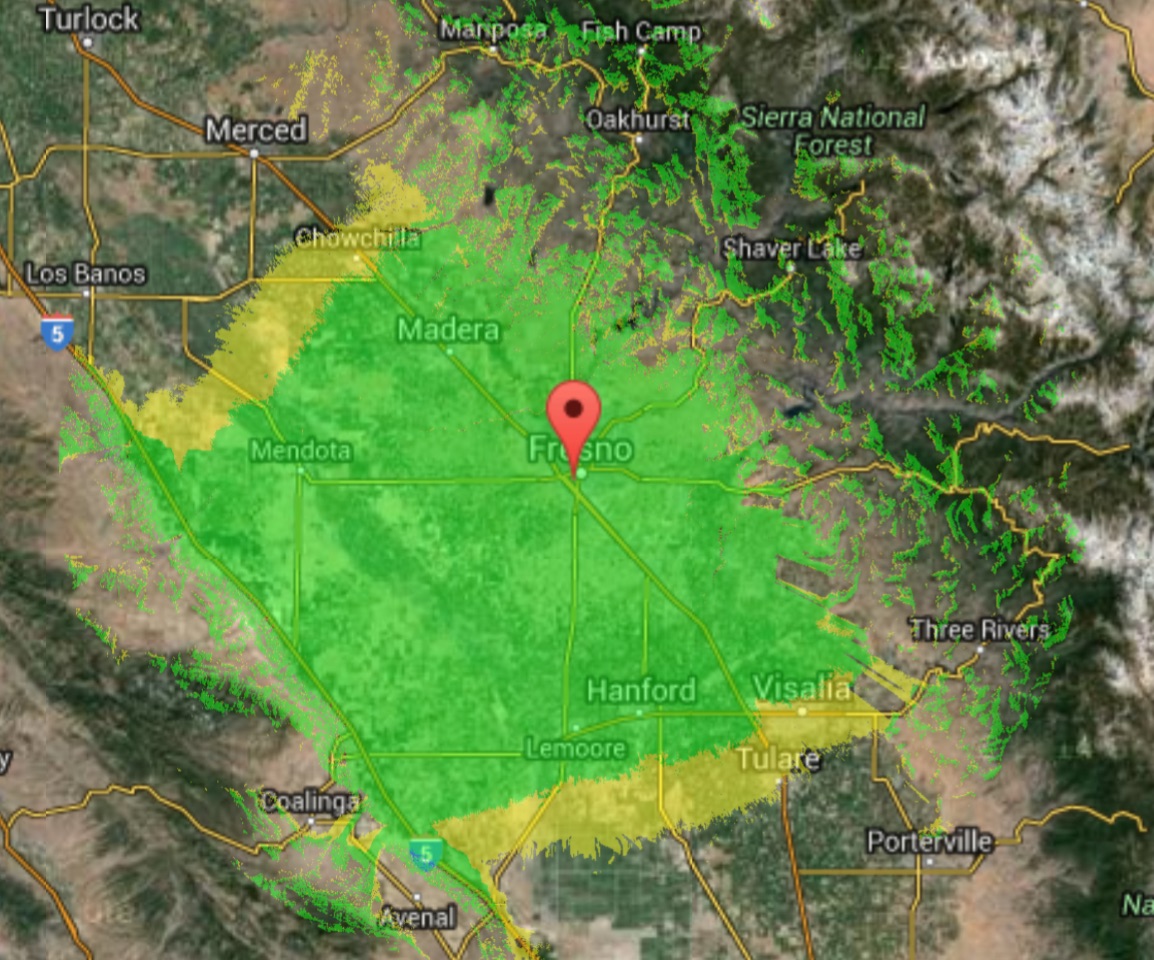

Estimated Coverage
